The DBSO (Driving Brake Standard Open) coaches were converted at Glasgow Works from 1974-built Mk2f BSO coaches.
The rebuild involved fitting the brake-van end with a half-cab and an EMU style power controller linked to a TDM transmitter.
The TDM (Time Division Multiplex) system sent pulsed control signals through the carriage lighting control circuits.
This system meant any air-braked coach could be include in the formation.
Worked with TDM translator fitted Push-Pull Class 47/7 locomotives.
Initially used on the Edinburgh Waverley - Glasgow Queen Street (E&G) route.
Trials started in August 1979 and the first DBSO push-pull set in passenger service ran on 22nd October 1979, powered by locomotive 47709. Further sets were introduced to replace the class 27 push-pulls by February 1980.
9701-9710 converted in 1979.
9706 cut up after Polmont crash in 1984.
9711-9713 converted in 1985
9714 converted in 1986
Obstacle Deflectors fitted in 1985 in response to Polmont crash.
Repainted in ScotRail Express livery between Autumn 1984/Spring 1985.
Extra DBSOs were converted for use on the Glasgow - Aberdeen route from May 1985.
Whether on Edinburgh or Aberdeen duties, the usual formation had the DBSO at the Glasgow end of the train.
Push-pull sets were used on Summer Sunday Oban line excursions in the 1980s
The DBSOs were transferred away from Scotland in May 1990, for use on the London Liverpool Street - Norwich route. At this time they overhauled at Derby works, the cab end gangways were removed, and updated TDM equipment compatible with electric locomotives was fitted.
![](http://www.scot-rail.co.uk/photo/scaled/245.jpg)

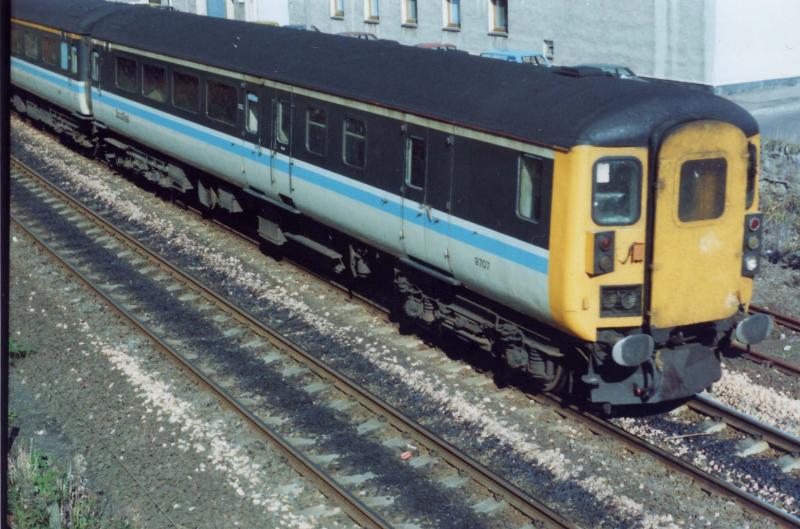

DBSO 9707 heads an Aberdeen - Glasgow train at Arbroath in the 1980's. Photo by nixer10
The rebuild involved fitting the brake-van end with a half-cab and an EMU style power controller linked to a TDM transmitter.
The TDM (Time Division Multiplex) system sent pulsed control signals through the carriage lighting control circuits.
This system meant any air-braked coach could be include in the formation.
Worked with TDM translator fitted Push-Pull Class 47/7 locomotives.
Initially used on the Edinburgh Waverley - Glasgow Queen Street (E&G) route.
Trials started in August 1979 and the first DBSO push-pull set in passenger service ran on 22nd October 1979, powered by locomotive 47709. Further sets were introduced to replace the class 27 push-pulls by February 1980.
9701-9710 converted in 1979.
9706 cut up after Polmont crash in 1984.
9711-9713 converted in 1985
9714 converted in 1986
Obstacle Deflectors fitted in 1985 in response to Polmont crash.
Repainted in ScotRail Express livery between Autumn 1984/Spring 1985.
Extra DBSOs were converted for use on the Glasgow - Aberdeen route from May 1985.
Whether on Edinburgh or Aberdeen duties, the usual formation had the DBSO at the Glasgow end of the train.
Push-pull sets were used on Summer Sunday Oban line excursions in the 1980s
The DBSOs were transferred away from Scotland in May 1990, for use on the London Liverpool Street - Norwich route. At this time they overhauled at Derby works, the cab end gangways were removed, and updated TDM equipment compatible with electric locomotives was fitted.
